ALLIED BRAND BARBED WIRE MAKING MACHINE



ALLIED BRAND BARBED WIRE MAKING MACHINE

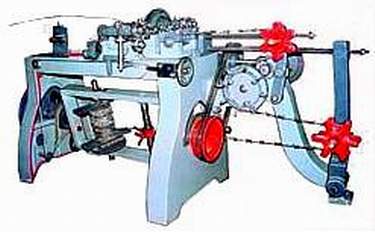

Allied brand Barbed Wire Making Machine.

Strand Wire & Point Wire 12/12swg, viz. 2.5-2.8/2.5-2.8 mm Diameter.

Tensile Stregth: H.B. Fully Hot Dipped Galvanized wire with under 30 kg. F/MM to 55 kg.

F/MM capacity/production: 6 Qtl/8 HR shift exclusive maintenence for 12/12swg. Wire keeping 140 to 220 barbs min with length to coil maximum 400 meters & weigth per bundle 40/50 kg. (bundle size 16" x 10")

Width Barb Spacing: 3 to 4" pitch also adjustable with additional gears in winding unit which ever could be supplied only under special demand.

Our Major emphasis are laid down upon its adjustibility of parts easy maintenance operator has wasy approach in setting all arms, cutters making the machine parts fool-proof it ensures easier dismantling, assembling, loading, unloading as well consequent view over flow of formed wire, all the adjustable parts are all together accessible and machine is supplied along with a set of spare twisting sleeve, Take up real, pay off stands, it requires 5 H.P. slow speed 3 H.P. 50C/S squirral eage induction motor with reversible starter whichever is not supplied with the machine it is designed in its heavy structure using closed grain castiron & steel in EN-36 series, all the gears are processed by bevel genrator & hobbing machines 15 Qtl enclusive of Pay-off stands.
